| Our Products Specifications |
| |
Hydraulic Control
Hacksaw Machine
|
| |
|
| |

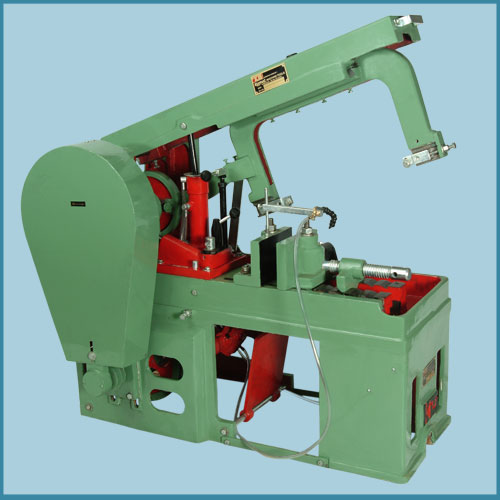

KMT - 8 |
|
|
| |
 |
|
| Stroke |
5½" / 138 mm. |
| No of Stroke per Minute |
100 to 125 |
| Electric Motor Required |
1 H.P. |
| R.P.M. |
1440 |
| Blade Size |
14" x 1¼" (350 x 32 mm)
16'' x 1.¼'' (400 x 32 mm)
|
| Capacity of Round Bars |
8'' (200 mm) |
| Capacity of Square Bars |
6'' (150 mm) |
| Weight |
350 kg. |
| Floor Space |
39'' x 17'' (995 x 435 mm) |
|
|
| |
|
|
| |
Use Blade : 10 T.P. up to 3'' Angle, Tees Channels, Pipe, Copper Brass....etc. 6 T.P. Over 4'' Dia or Square |
|
| |
Extra Accessries will be Extra Charged : Electic, Motor, Swich / Starter, Vee, belt set.... |
|
|
| |
| |

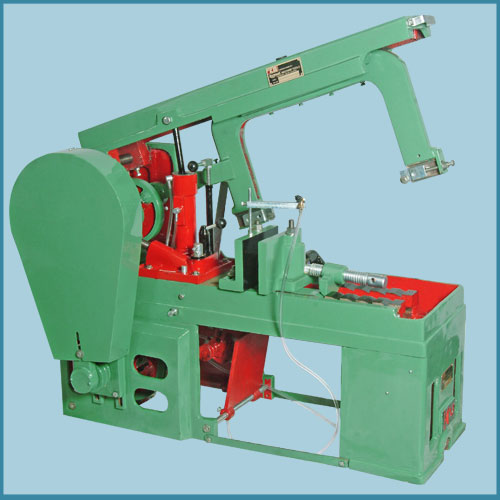

KMT - 10 |
|
|
| |
 |
|
| Stroke |
5½" / 138 mm. |
| No of Stroke per Minute |
100 to 125 |
| Electric Motor Required |
1.5 H.P. |
| R.P.M. |
1440 |
| Blade Size |
16" x 1¼" (400 x 32 mm)
18'' x 1.¼'' (450 x 32 mm) |
| Capacity of Round Bars |
10'' (250 mm) |
| Capacity of Square Bars |
8'' (200 mm) |
| Weight |
450 kg. |
| Floor Space |
43'' x 18'' (1100 x 460 mm) |
|
|
| |
|
|
| |
Use Blade : 10 T.P. up to 3'' Angle, Tees Channels, Pipe, Copper Brass....etc. 6 T.P. Over 4'' Dia or Square |
|
| |
Extra Accessries will be Extra Charged : Electic, Motor, Swich / Starter, Vee, belt set.... |
|
|
| |
| |

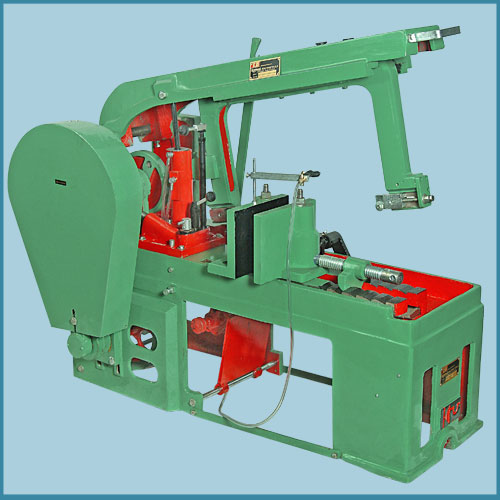

KMT - 12 |
|
|
| |
 |
|
| Stroke |
5½" / 138 mm. |
| No of Stroke per Minute |
85 to 100 |
| Electric Motor Required |
2.0 H.P. |
| R.P.M. |
1440 |
| Blade Size |
18" x 1¼" (450 x 32 mm)
20'' x 1.¼'' (500 x 32 mm) |
| Capacity of Round Bars |
12'' (300 mm) |
| Capacity of Square Bars |
10'' (250 mm) |
| Weight |
600 kg. |
| Floor Space |
48'' x 20'' (1220 x 600 mm) |
|
|
| |
|
|
| |
Use Blade : 10 T.P. up to 3'' Angle, Tees Channels, Pipe, Copper Brass....etc. 6 T.P. Over 4'' Dia or Square |
|
| |
Extra Accessries will be Extra Charged : Electic, Motor, Swich / Starter, Vee, belt set.... |
|
|
| |
| |

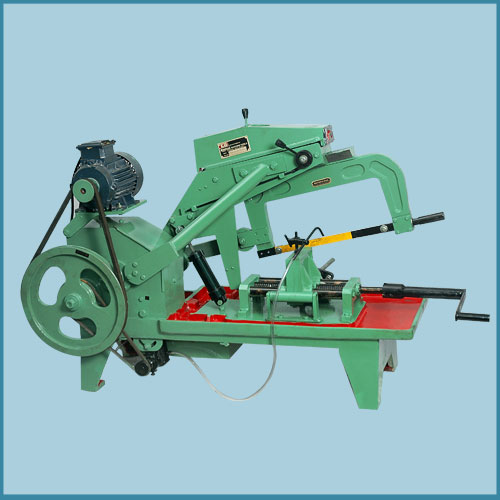

Semi-Hydraulic KMT - 7
|
|
|
| |
 |
|
| Stroke |
Adjustable stroke 100/225 mm 4"/9" |
| No of Stroke per Minute |
65 |
| Electric Motor Required |
1 H.P. |
| R.P.M. |
1440 |
| Blade Size |
14" x 1/4" (350 x 32 mm) |
| Capacity of Round Bars |
7" (175 mm) |
| Capacity of Square Bars |
6" (150 mm) |
| Weight |
180 kg. |
| Floor Space |
45" x 15" (1050 x 375mm) |
|
|
| |
|
|
| |
Use Blade : 10 T.P. up to 3'' Angle, Tees Channels, Pipe, Copper Brass....etc. 6 T.P. Over 4'' Dia or Square |
|
| |
Extra Accessries will be Extra Charged : Electic, Motor, Swich / Starter, Vee, belt set.... |
|
|
| |
| |
| Coolant Pump |
| |
| |

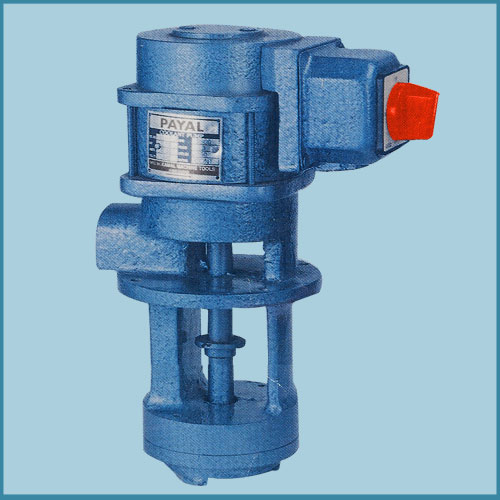

PC - 120 |
|
|
| |
 |
|
| Model |
PC -120 |
| HP |
0.15 |
| Phase |
1/3 |
| RPM |
2800 |
| Stream Length |
120mm |
| Out Let Size |
¾” BSP |
| Out Put at 1 Mtr. Head |
36 Lt/Min |
|
|
| |
| |
| |

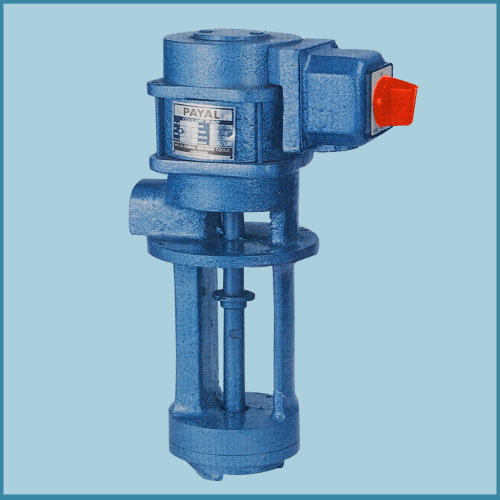

PC - 170 |
|
|
| |
 |
|
| Model |
PC -170 |
| HP |
0.15 |
| Phase |
1/3 |
| RPM |
2800 |
| Stream Length |
170mm |
| Out Let Size |
¾” BSP |
| Out Put at 1 Mtr. Head |
36 Lt/Min |
|
|
| |
| |
| |

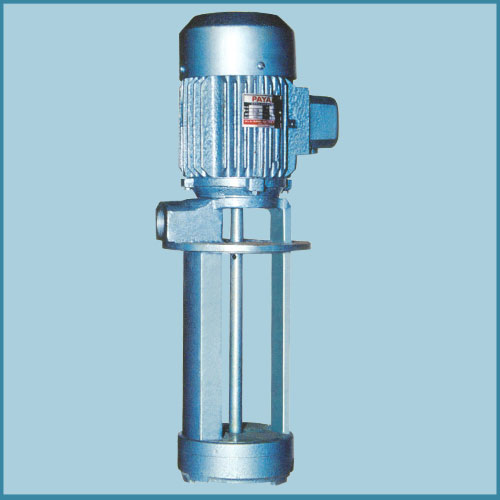

PC - 220 |
|
|
| |
 |
|
| Model |
PC - 220 / 0.25 |
PC – 220 / 0.5 |
PC – 220 / 1.0 |
| HP |
0.25 |
0.5 |
1.0 |
| Phase |
3 |
3 |
3 |
| RPM |
2800 |
2800 |
2800 |
| Stream Length |
220mm |
220mm |
220mm |
| Out Let Size |
1” BSP |
1” BSP |
1” BSP |
| Out Put at 1 Mtr. Head |
180 Lt/Min |
180 Lt/Min |
180 Lt/Min |
|
|
| |
| |
| |
